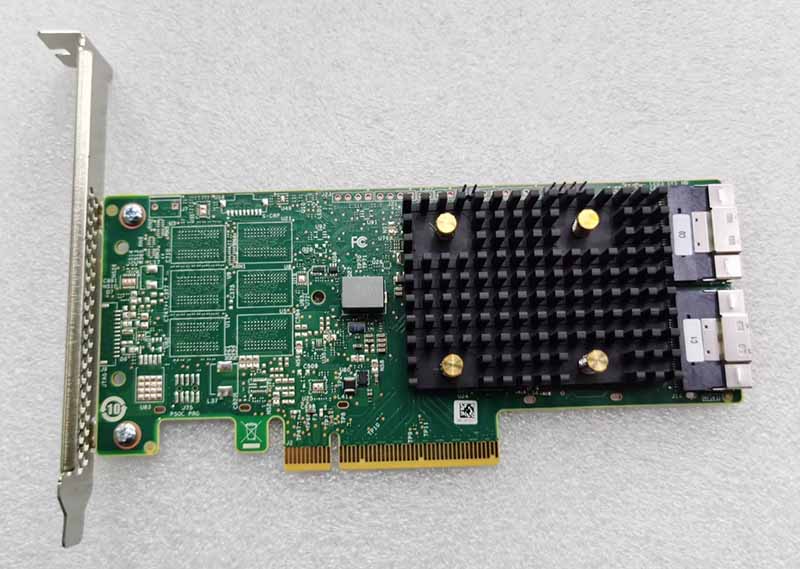

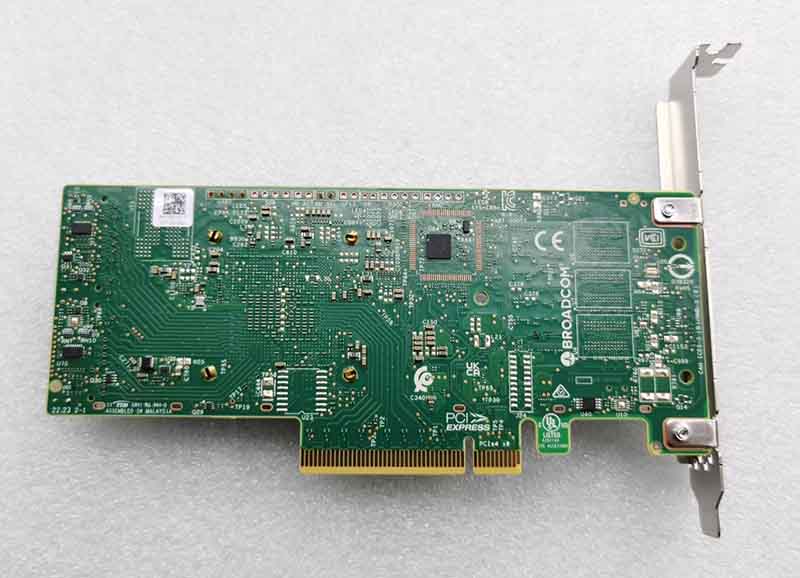

Broadcom 9500-16I_Broadcom RAID card_AI Servers and Accessories_Product Center

型号：9500-16I

Tri-mode storage interface

Hardware Secure Boot

Universal Bracket Management (UBM) Ready (SFF-TA-1005)

13,700 MB (256K sequential streams)

300万IOPS（4K RR）

x8 PCIe Gen 4.0 host interface

Connector pinout compliant with SFF-9402

Up to 1024 SAS/SATA devices

Up to 32 NVMe devices

Cable exit with friendly form factor

恒正同创第二次版详情页_01

恒正同创第二次版详情页_02

恒正同创第二次版详情页_03

Product Model	9500-16I
Host Bus Type	PCIe 4.0 x8 Lane
I/O Processor	SAS3816 Controller Chip
Physical Interface	2 x SFF-8654 SlimSAS Connectors
Data Transfer Rate	12Gb/s SAS-3 Speed, PCIe 4.0 x1 Lane 16GT/s
Device Support	Up to 1024 SAS/SATA Devices and 32 NVMe Devices Supported
Management Software	LSI Storage Authority (LSA), StorCLI, UEFI HII
Operating System Support	Windows/VMware/Linux
Cache Design	No Onboard Cache (Relies on Host Memory)
RAID Function	Supports SAS/SATA/NVMe Tri-mode Hybrid Connection
Environmental Parameters	Operating Temperature: 0°C - 55°C, Humidity: 20% - 80%, Mean Time Between Failures (MTBF) > 5,000,000 Hours (at 40°C)
Certification Standards	CE/FCC/RoHS/WEEE and Other International Certifications
Accessory Information	Standard Full-height / Low-profile Dual Bracket
Power Consumption Data	Typical Load Power Consumption: 18W, Standby Power Consumption: 8W
Firmware Features	Supports Firmware Over-the-Air (FOTA) Update
