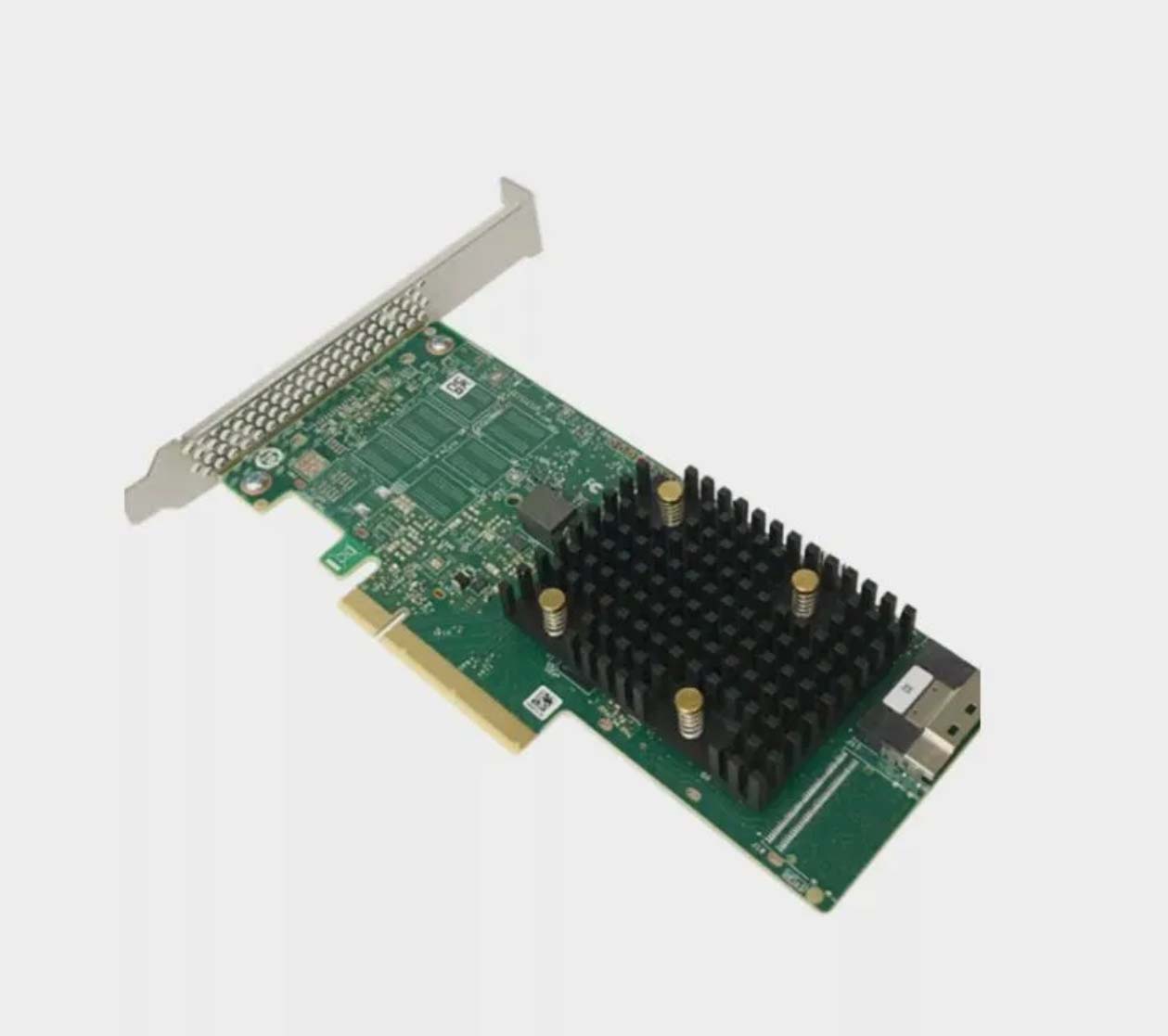

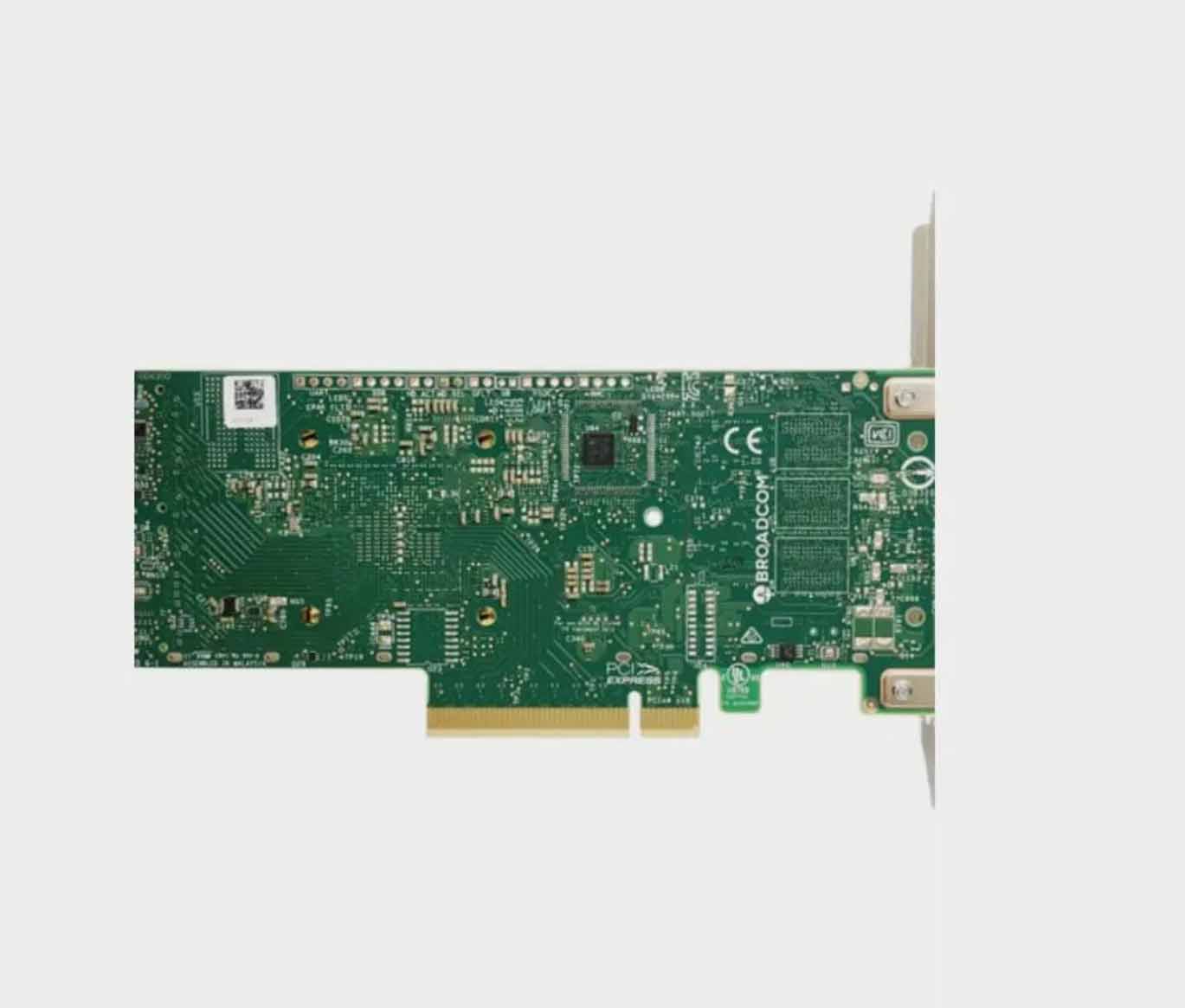

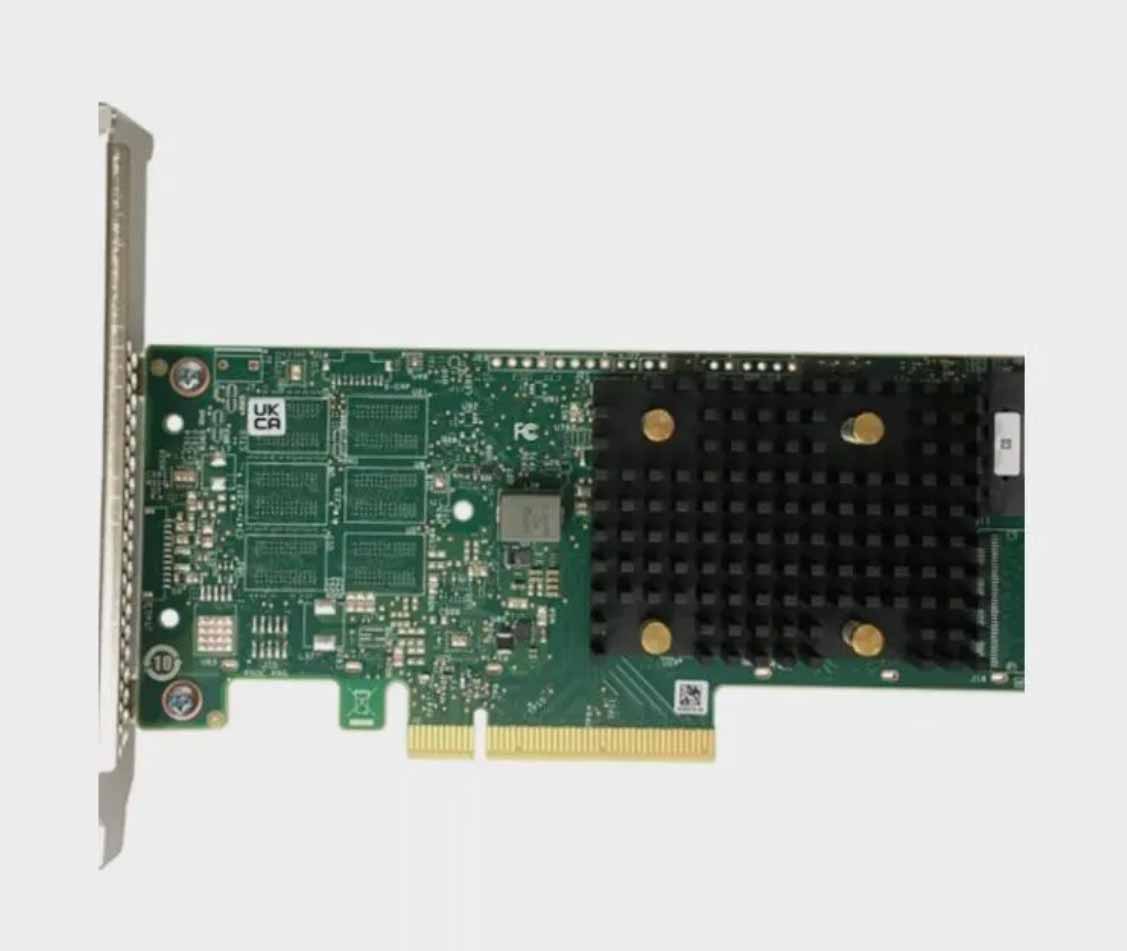

Broadcom 9540-8I_Broadcom RAID card_AI Servers and Accessories_Product Center

型号：9540-8I

Supports up to 63 SAS/SATA devices and 4 NVMe devices

Uses RAID 0, 00, 1, 10 to balance protection and performance for mission-critical applications

Supports mission-critical high-bandwidth applications via PCIe 4.0 connectivity

Advanced security through hardware secure boot

恒正同创第二次版详情页_01 恒正同创第二次版详情页_02 恒正同创第二次版详情页_03

Product Model	9540-8I
Data Transfer Rate	Compatible with 12Gb/s SAS and 16GT/s PCIe Gen4 (NVMe)
Supported Devices	SAS/SATA: 63 units; NVMe: 4 units
Rate	12 Gb/s
Host Bus Type	x8 PCI Express 4.0 lanes
Input/Output Processor / SAS Controller	SAS3808
Internal Connectors	1 x8 SFF-8654 (SlimSAS)
Internal Ports	8
Management Software	LSI Storage Authority (LSA), StorCLI (Command Line Interface), HII (UEFI Human Interface Infrastructure)
Mean Time Between Failures (MTBF)	Greater than 3,000,000 hours at 40°C
Operating Temperature	0°C to 55°C
Operating System	Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SUSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Linux, Fedora, FreeBSD
Physical Dimensions	155.52 (±0.13) mm × 68.77 (±0.13) mm
RAID Level	0、00、1、10
Typical Power Consumption	6.0W
