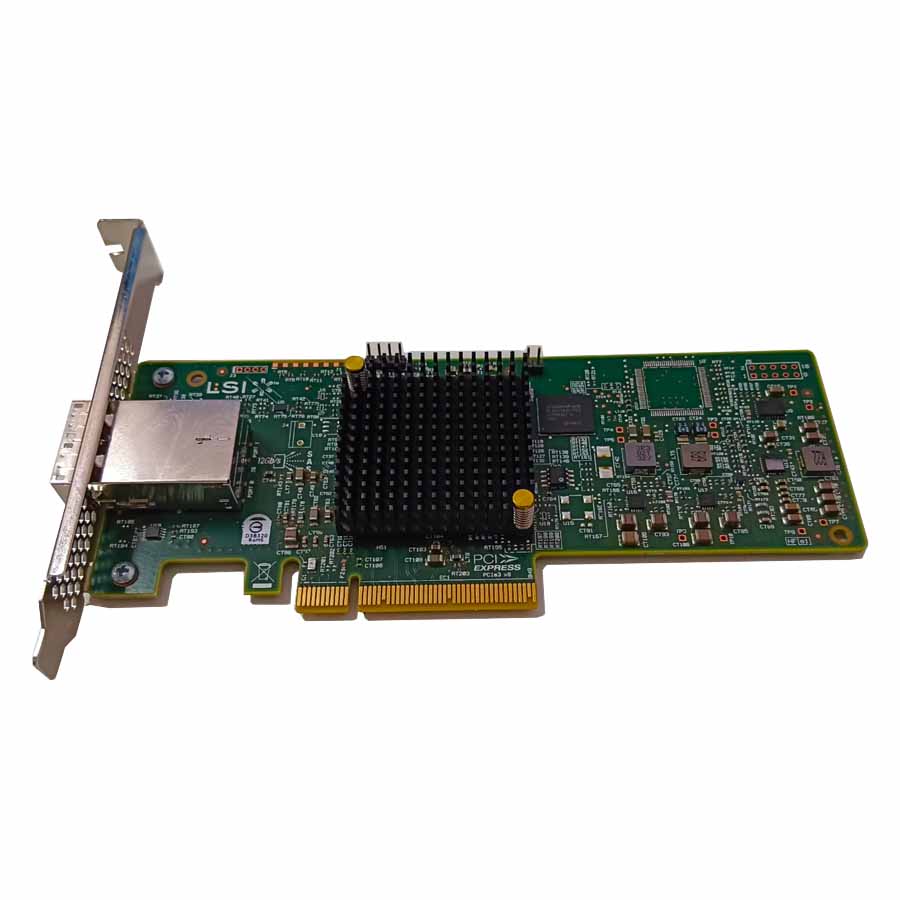

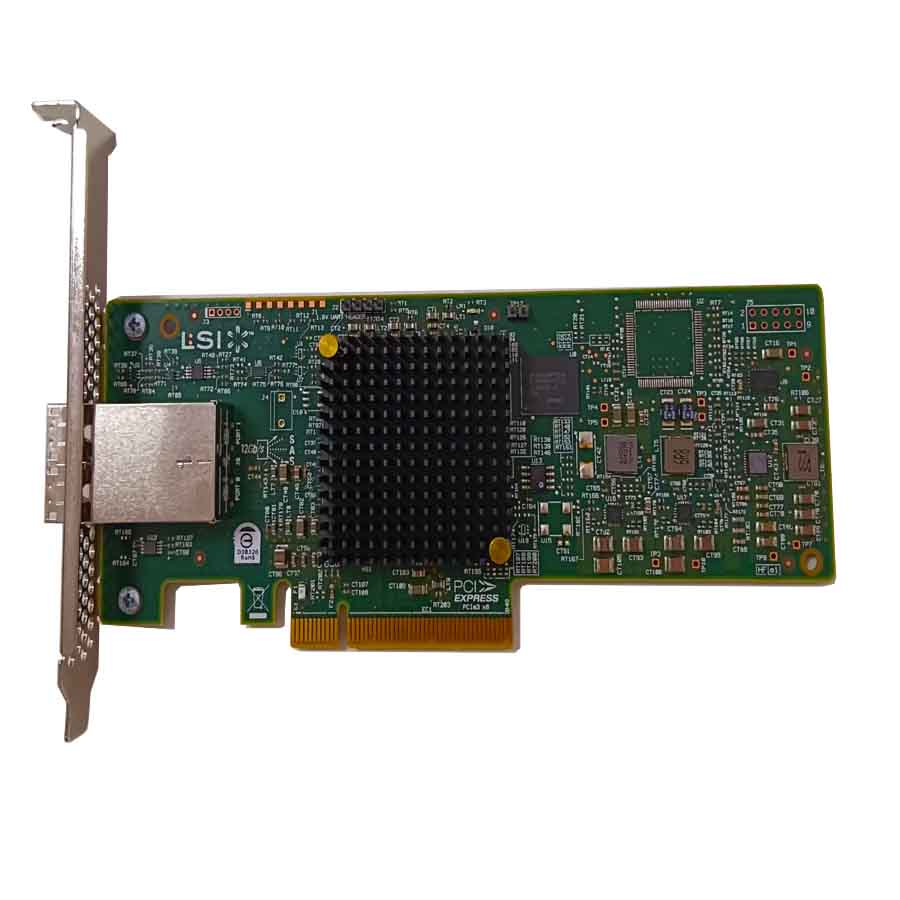

Broadcom 9300-8E
￥1

型号：9300-8E

加入购物车

产品特征

Eight/four 12Gb/s SAS+SATA ports

Eight channel PCI Express 3.0

Thin profile

Mini SAS HD connector

SAS 3008 12Gb/s SAS+SATA Controller

Supports SSD, HDD, and tape drives

  • 商品详情
  • 资料下载(PDF)

恒正同创第二次版详情页_01

恒正同创第二次版详情页_02

恒正同创第二次版详情页_03


Product Model

  9300-8E

‌physical dimensions

2.6 inches (height) x 6.0 inches (length)

‌Host bus type

PCIe 3.0 x8 channel, compatible with x16 slot 4

‌I/O processor

LSI SAS 3008 controller, supporting Fusion MPT 2.5 architecture 15

RAID function

Supports RAID 0/1/5/6/10/50/60,

requires hardware acceleration configuration

Device support

Maximum 1024 non RAID SAS/SATA devices,

8 external SAS channels 13

‌Data transmission rate

12Gb/s SAS-3 (per channel), compatible with 3Gb/s and 6Gb/s 45

support

Full height, thin ventilation

Working Voltage

+12V+/-8%；3.3V+/-9%

Working temperature (° C)

0°C 至 55°C

Operating system support

Microsoft Windows、Linux（SuSE、Red Hat）、Solaris、VMware、FreeBSD
