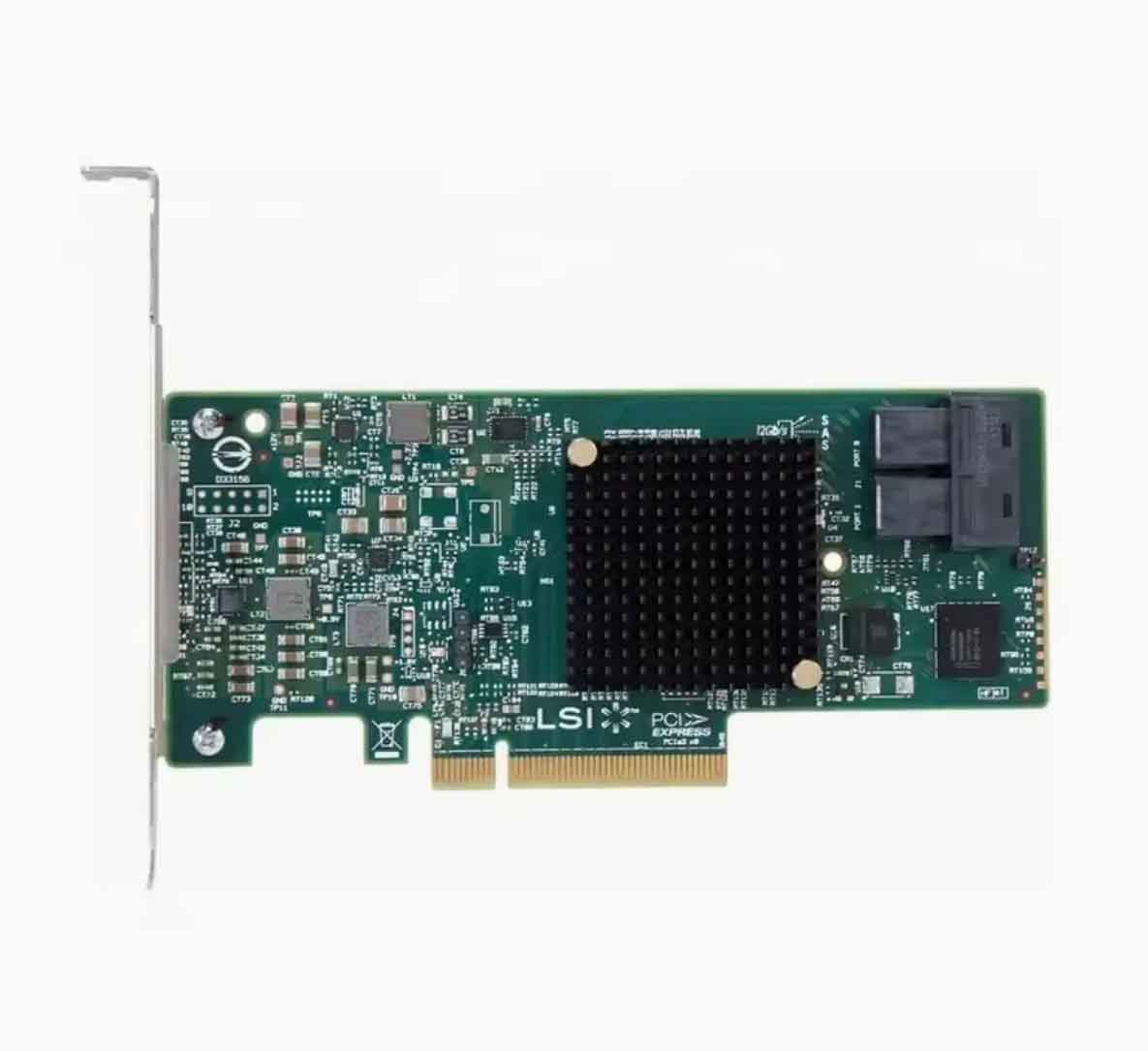

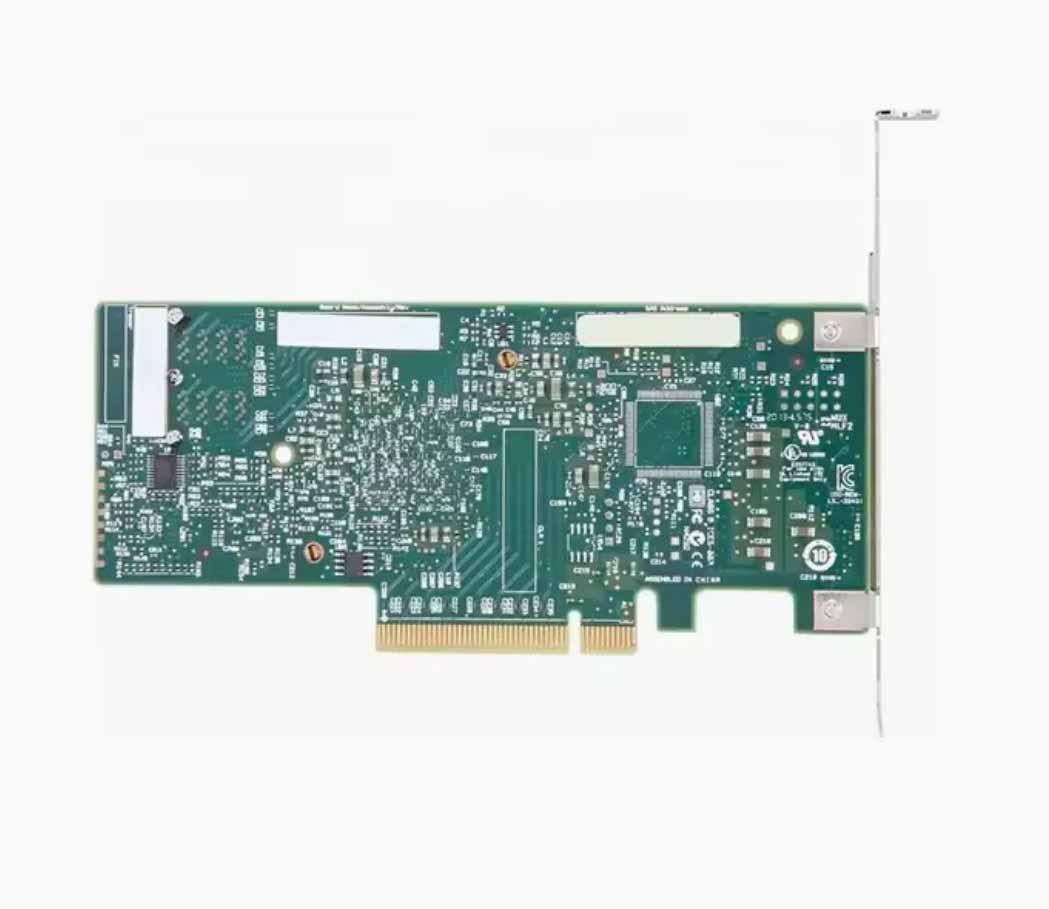

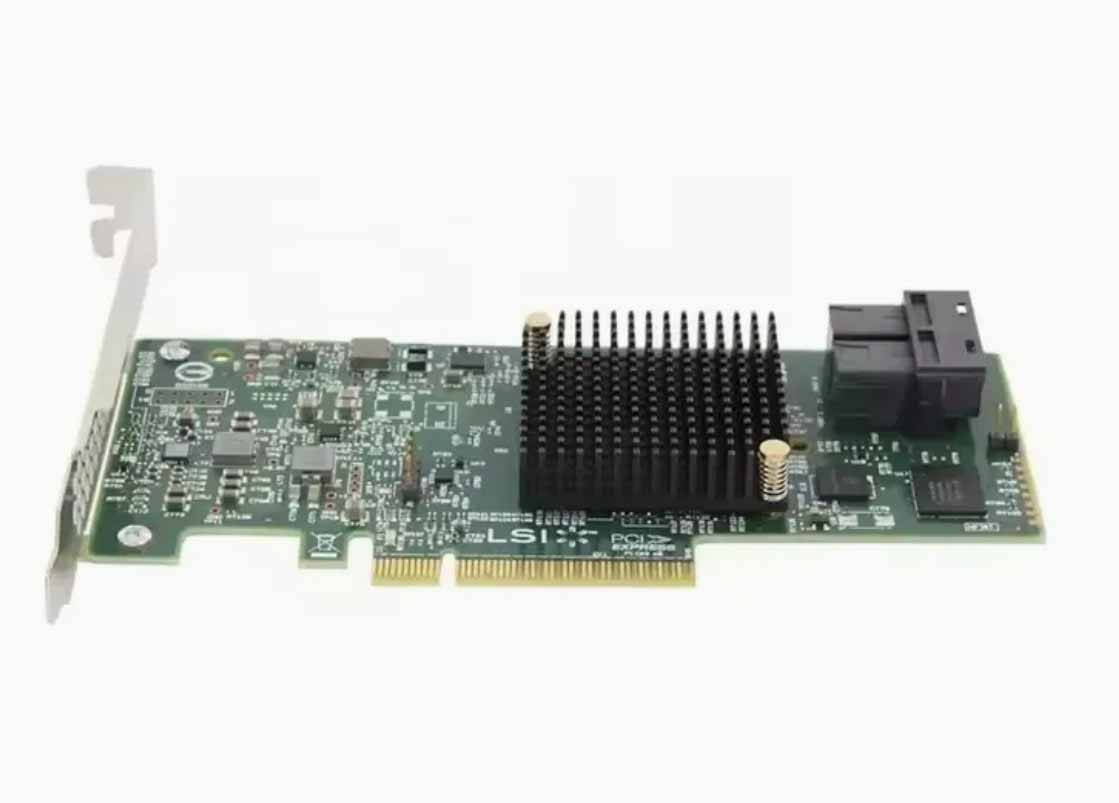

Broadcom 9300-8i
￥1

型号：9300-8i

加入购物车

产品特征

Eight/four 12Gb/s SAS+SATA ports

Eight channel PCI Express 3.0

Thin profile

Mini SAS HD connector

SAS 3008 12Gb/s SAS+SATA Controller

Supports SSD, HDD, and tape drives

  • 商品详情
  • 资料下载(PDF)

恒正同创第二次版详情页_01恒正同创第二次版详情页_02恒正同创第二次版详情页_03


Product Model

9300-8i

physical properties

Low profile size: 6.127 × 2.712 inches (2.6 × 6.0cm),

 compatible with full height/half height baffles

Host bus

PCI Express 3.0 x8 Channel Interface

I/O processor

SAS3008 controller chip

RAID function

Supports hardware RAID acceleration (distinguishing between

HBA mode and RAID mode), with optional cache protection

Equipment support

Maximum 1024 SAS/SATA devices (via expansion backplane)

Data transmission rate

12Gb/s per channel (SAS 3.0 standard),

2 SFF-8643 interfaces provide 8 physical ports

High speed cache

Optional cache module, supporting LSI CacheCade technology

(license required)

Operating System Authentication

Windows Server/Linux/VMware ESXi/XenServer/FreeBSD 等

environmental parameters

Working temperature 0 ° C-55 ° C, humidity 20% -80% non condensing, MTBF>5 million hours (40 ° C)

Power consumption

Typical power consumption 5.96W

Management Tools

LSI Storage Authority/StorCLI Command Line/UEFI HII Interface

International Certification

Multiple safety certifications including CE/FCC/RoHS/WEEE
