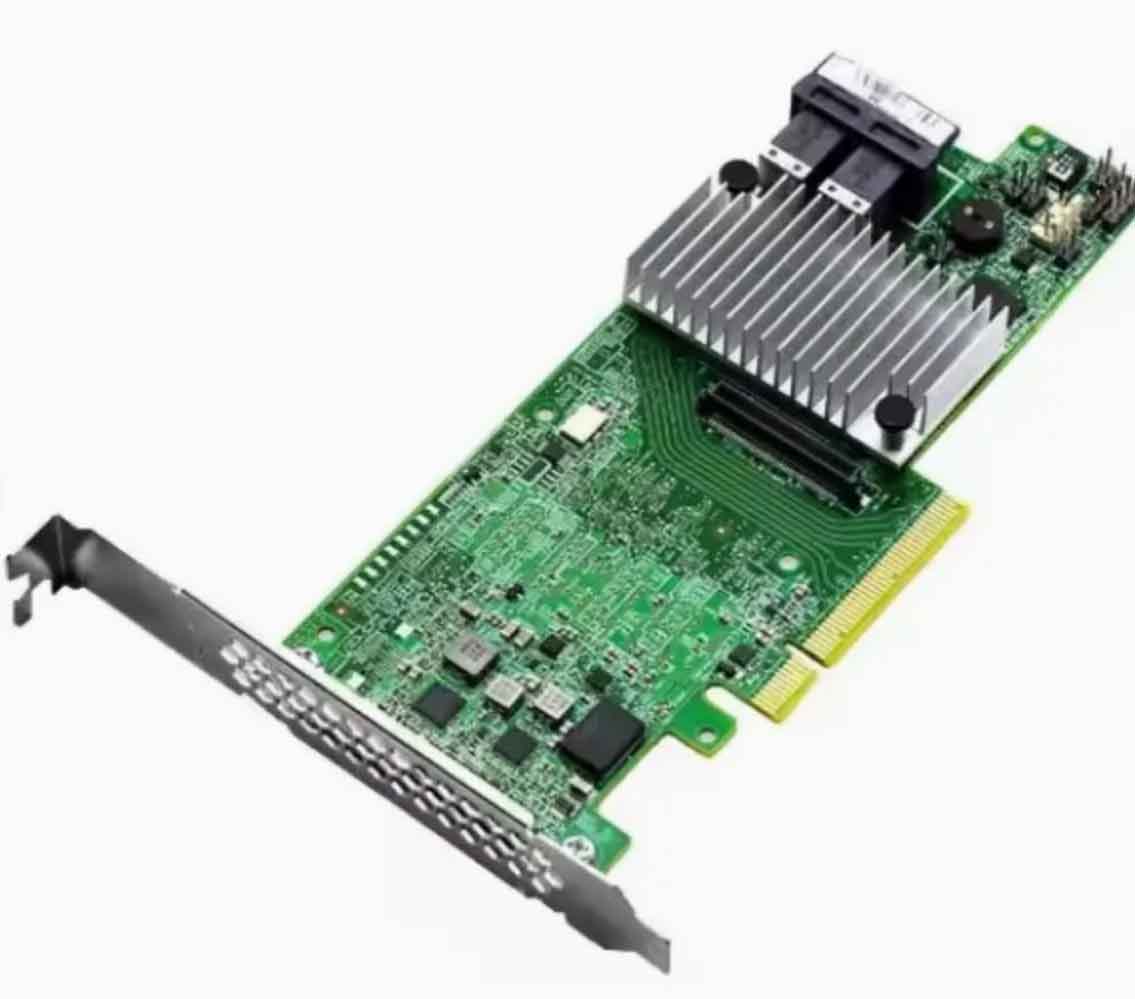

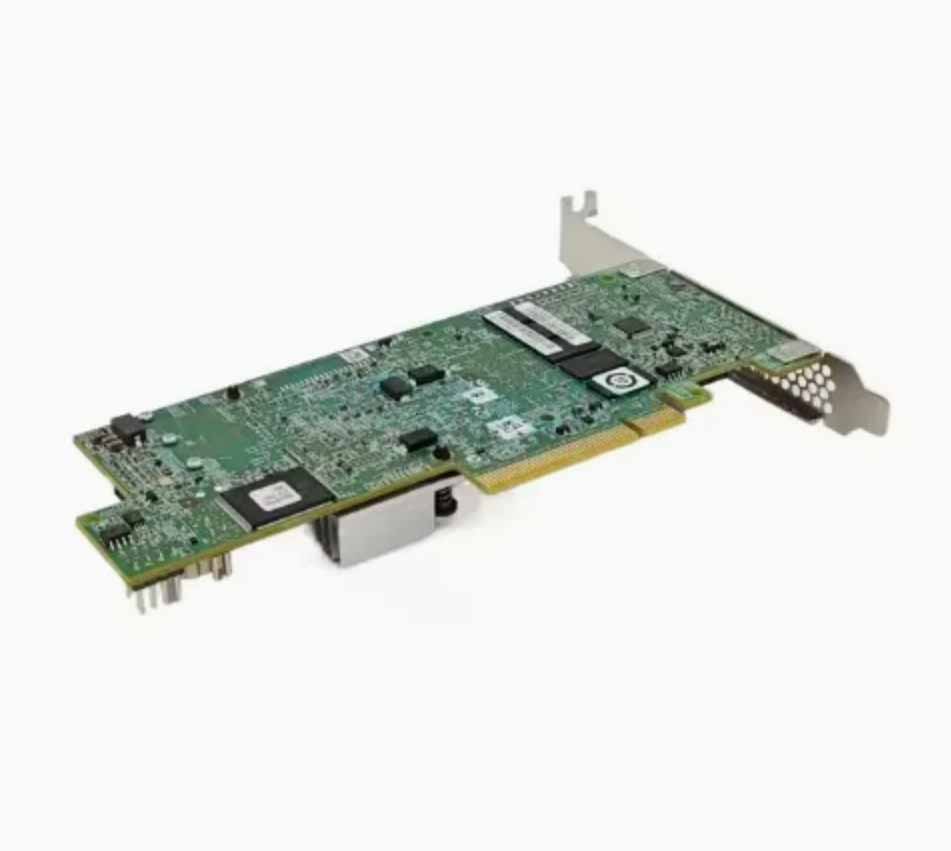

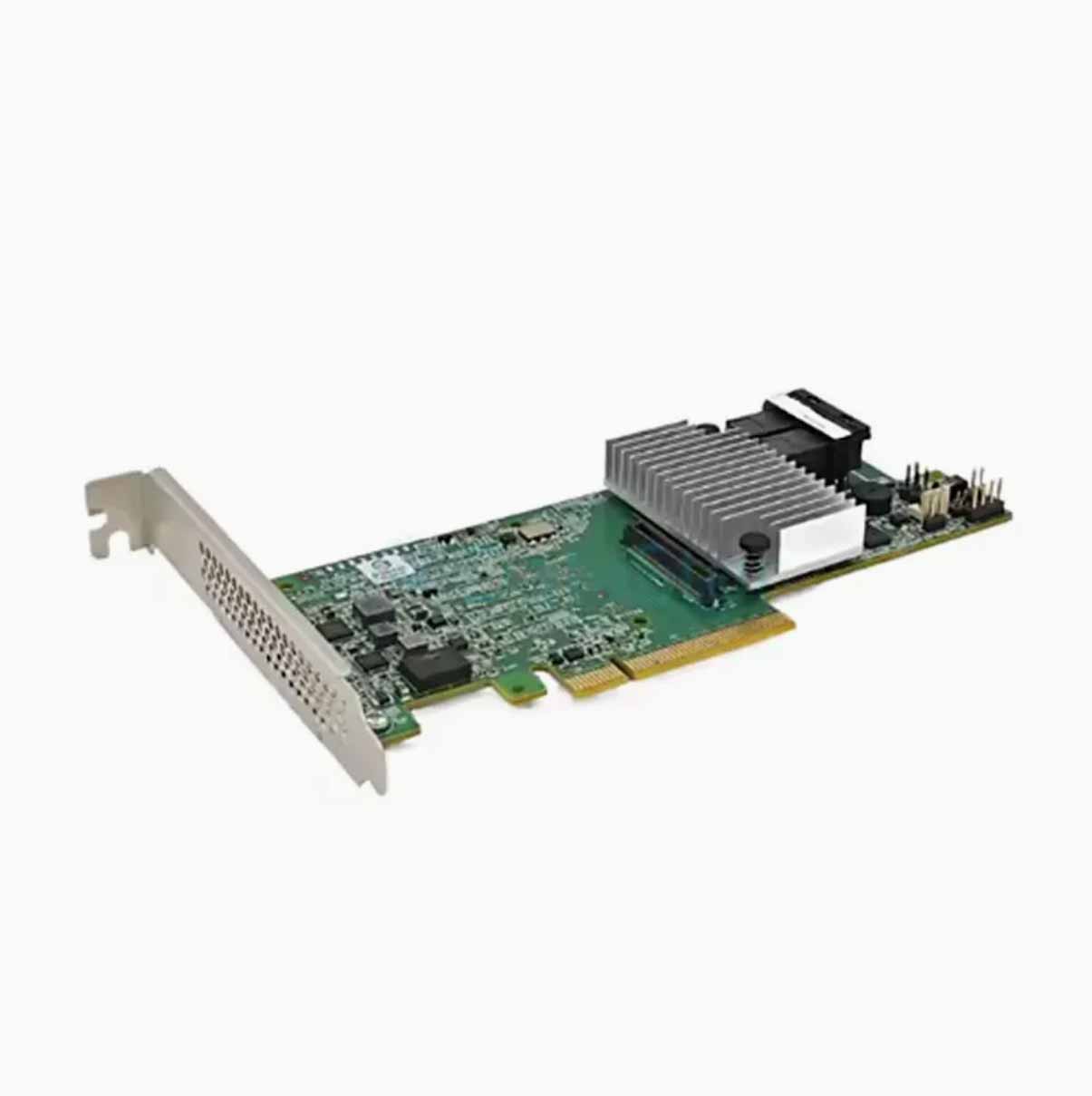

Broadcom 9361-8i_Broadcom RAID card_AI Servers and Accessories_Product Center

型号：9361-8i

High-performance 12Gb/s data transfer rate

Eight internal 12Gb/s SATA+SAS ports

Two Mini SAS SFF8643 internal connectors (horizontal mounting)

LSI SAS 3108：1.2GHz PowerPC ® 476 dual core 12Gb/s on-chip RAID controller

PCI Express 3.0 host interface

1GB/2GB DDRIII cache

RAID levels 0, 1, 5, 6, 10, 50 and 60

Supports CacheVault® flash cache protection

恒正同创第二次版详情页_01

恒正同创第二次版详情页_02 恒正同创第二次版详情页_03

Product Model	9361-8i
Physical Dimensions	MD2 low profile (6.6 inches × 2.536 inches)
Connector		Two Mini SAS SFF8643 internal connectors (horizontal mounting)
Device Support		Supports up to 128 SAS and/or SATA devices
Host Bus Type		Compliant with PCI Express 3.0 x8 standard
Data Transfer Rate		Up to 12 Gb/s per port
Data Transfer Rate		SAS3108 12 Gb/s dual-core ROC
Cache Memory Options		1 GB 1866 MHz DDR3 SDRAM•2 GB 1866 MHz DDH3 SDRAM
Cache Protection		Optional CacheVault Flash Module (LSICVM02) – Includes CVFM04, CVPM02, mounting clip, and cable
Operating Temperature		Maximum ambient temperature: Controller card: 55°C, with optional CacheVault accessory (LSICVM02): 55°C
Operating Voltage		+3.3V，+12V
Mean Time Between Failures (Calculated)		1,343,187 小时
MegaRAID Management Suite		- MegaRAID Storage Manager - StorCLI (Command Line Interface) - CTRL-R (BIOS Configuration Utility) - HII (UEFI Human Interface Infrastructure)
操作系统支持		Broad support for Microsoft Windows Server 2012/8 and 7/2008/ Vista/2003, Linux, Solaris (x86), FreeBSD, VMware
