Broadcom 9361-16i
￥1

型号：9361-16i

加入购物车

产品特征

High-performance 12 Gb/s data transfer rate

16 internal 12 Gb/s SATA+SAS ports

Four Mini SAS SFF8643 internal connectors (horizontal mounting)

SAS3316 RAID-on-Chip

PCI Express 3.0 host interface

2 GB DDR3 cache

RAID levels 0, 1, 5, 6, 10, 50 and 60

Supports CacheVault flash cache protection

  • 商品详情
  • 资料下载(PDF)

恒正同创第二次版详情页_01恒正同创第二次版详情页_02恒正同创第二次版详情页_03

微信截图_20250611112351

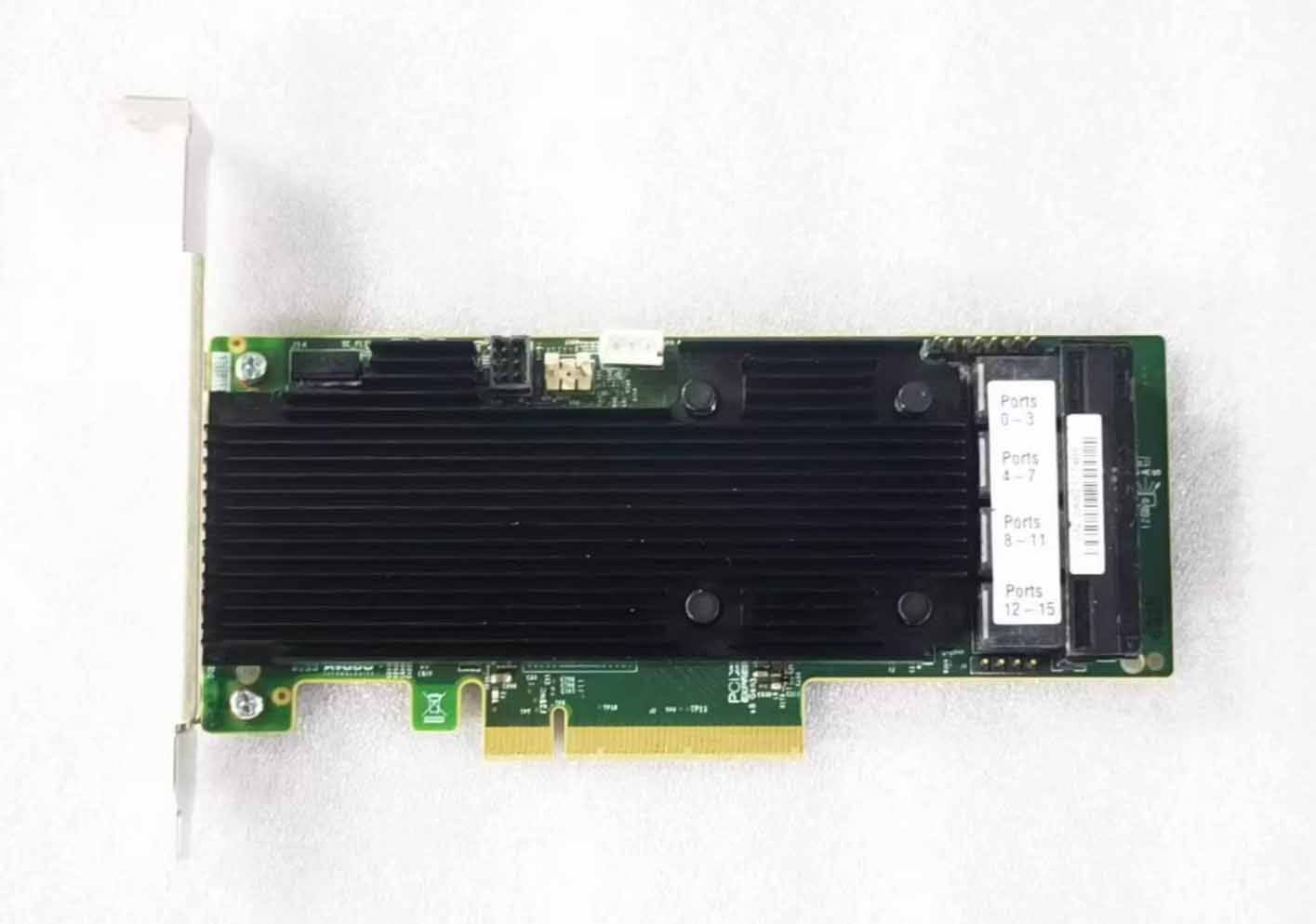

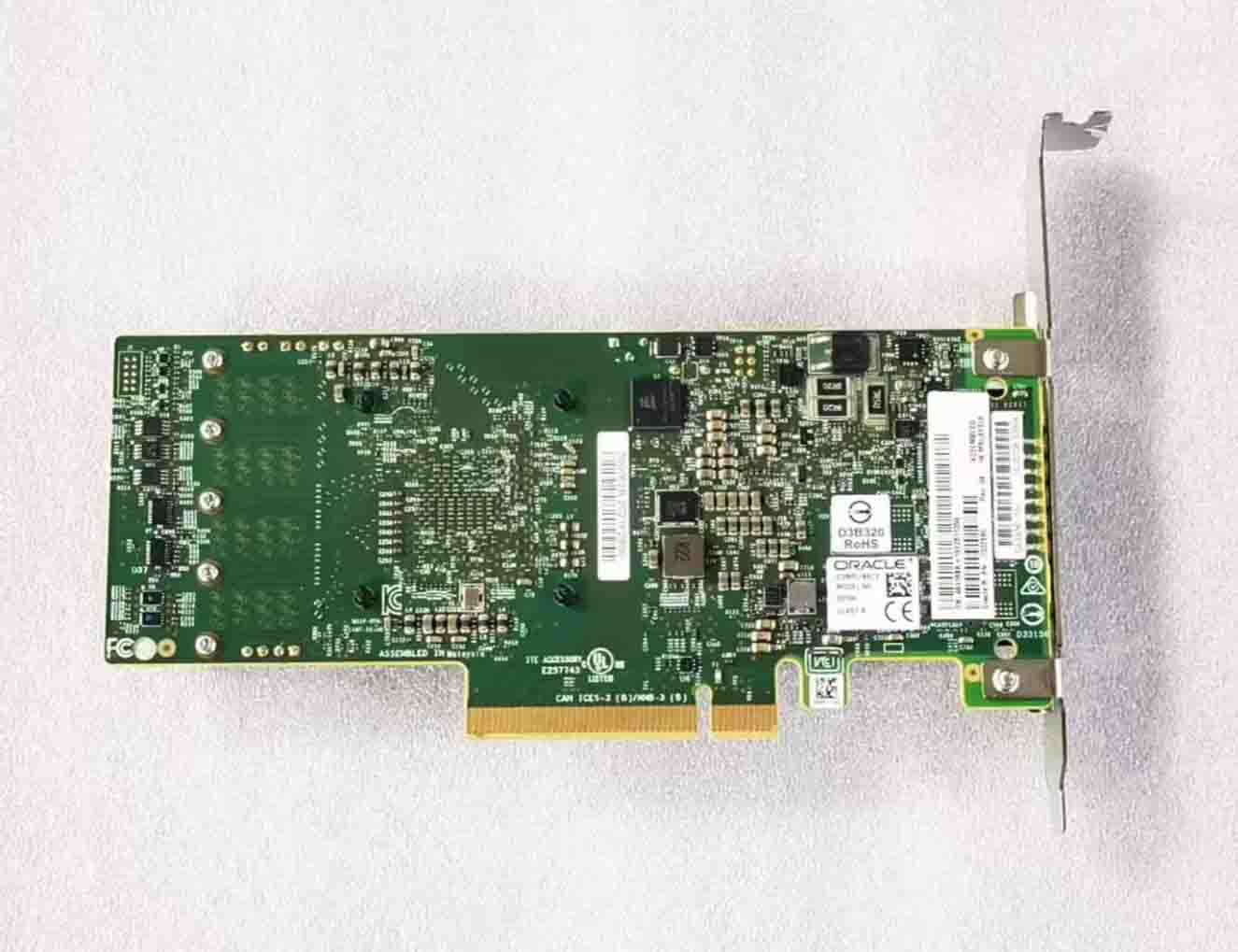

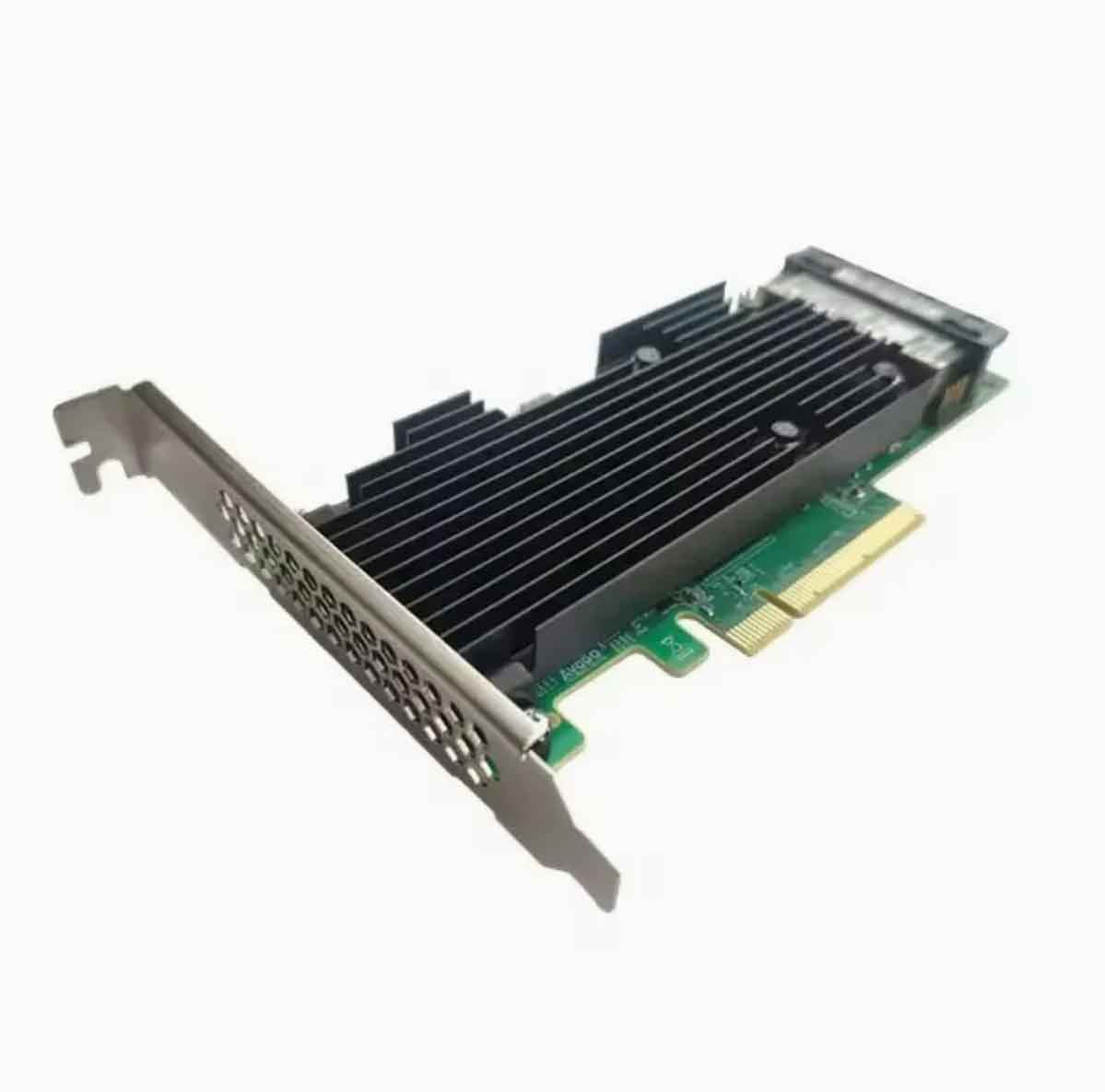

Broadcom 9361-16I
The Broadcom/LSI MegaRAID 9361-16i RAID controller card, featuring 16 native 12Gb/s SAS ports and a dual-core 1.2GHz processor, achieves a data transfer rate of up to 12Gb/s, significantly enhancing data throughput efficiency.
It supports RAID levels 0/1/5/6/10/50/60. Combined with a 2GB DDR3 cache and CacheVault flash protection technology, it ensures data security and business continuity. The PCIe 3.0 x8 interface enables low-latency communication and is compatible with 240-device expansion, suiting high-density storage needs.

Its multi-mode management tools (WebBIOS/CLI/GUI) and mainstream server certifications provide a flexible and reliable enterprise-class storage solution for IT operations.


model
9361-16I
Core Chip
sas3316 RAID chip + Dual-core 1.2GHz PowerPC 476 Processor
Interface Standard
4× SFF-8643 Internal Connectors (Horizontal Installation), 16 Native 12Gb/s SAS/SATA Ports
Host Interface
PCIe 3.0 x8 Slot
Cache Configuration
2GB DDR3 Cache, Supports CacheVault Flash Protection
RAID Levels
Supports 0/1/5/6/10/50/60 and JBOD Modes
Maximum Expansion Capability
Can Connect to 240 SAS/SATA Devices via Expander
Data Transfer Rate
12Gb/s SAS 3.0, Compatible with 6Gb/s SATA III
Management Tools
Supports MegaRAID Storage Manager (WebBIOS/CLI/GUI) and StorCLI Command-line Tool
Configuration Method
Press Ctrl+R During Boot to Enter Configuration Interface, Supports Virtual Disk Creation in Legacy/BIOS Modes
Firmware Information
Can View Version Number, PCI Slot Number and Other Attributes via Controller Management Interface
Enterprise-class Features
Supports Hot-plug, Online Capacity Expansion, Automatic Reconstruction, Optional CVPM02 Capacitor Backup Module
Compatibility Certification
Compatible with Mainstream Servers such as Huawei/Inspur, Supports Windows/Linux/VMware Systems
