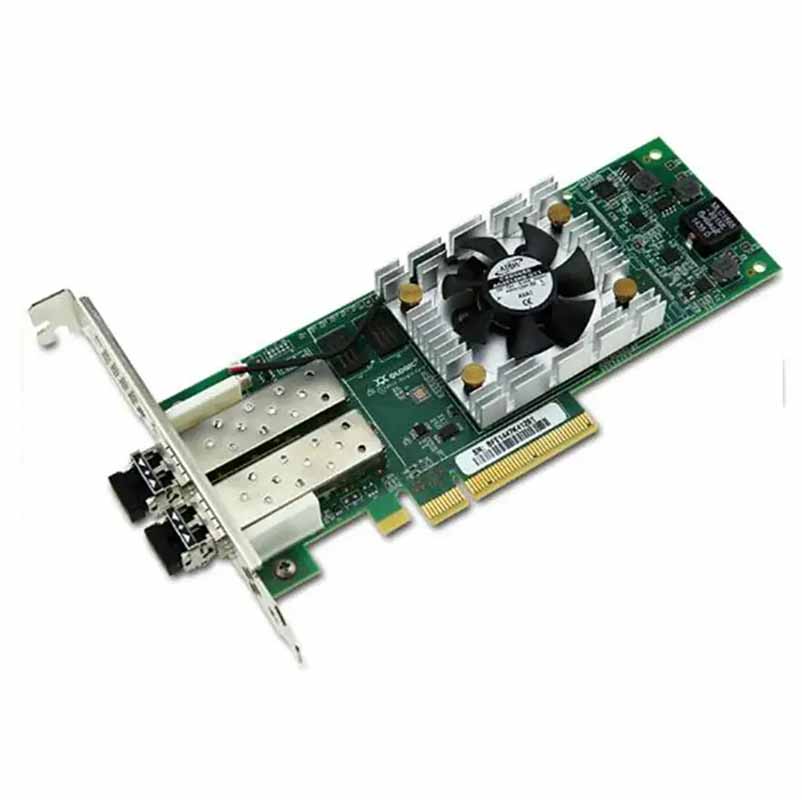

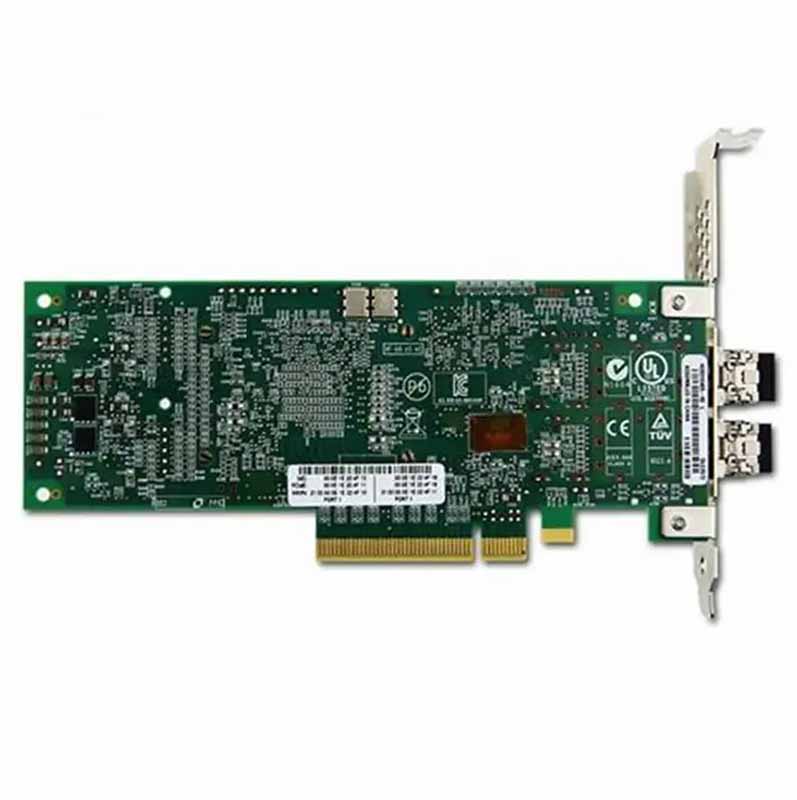

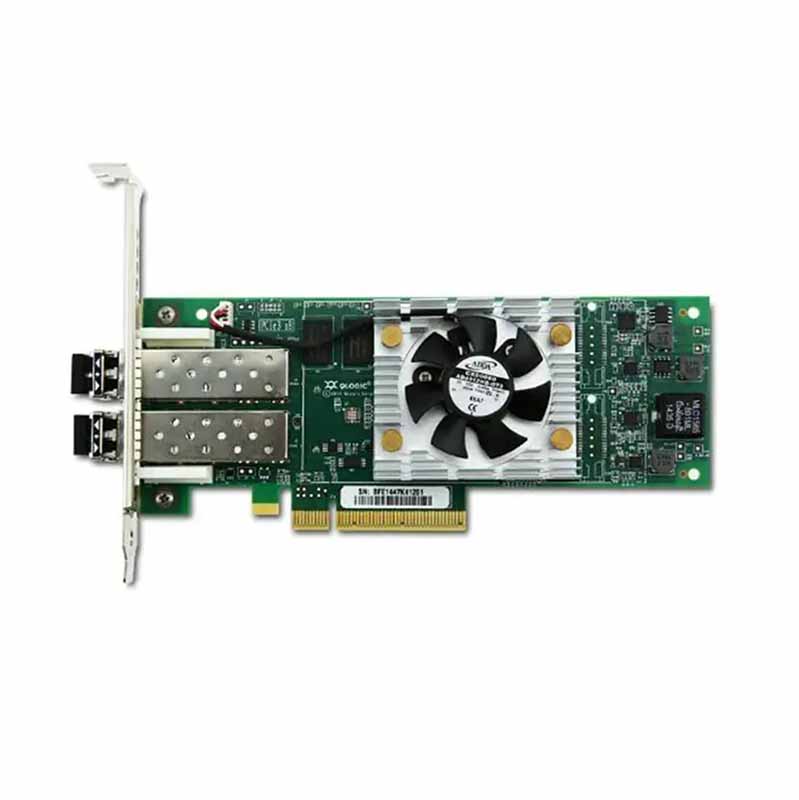

QLogic QLE2672

￥1

型号：QLE2672

加入购物车

产品特征

Virtualization Optimization

Outstanding performance

Integrated Brocade matrix functionality

Higher resilience and performance recovery with automatic error

Simplified management

Marvell's High Availability Architecture

商品详情
资料下载(PDF)


The Marvell® QLogic® QLE2670 and QLE2672 16Gb Fibre Channel (16GFC) Adapters boast excellent native Fibre Channel (FC) performance—achieving dual-port, line-rate 1,600MBps FC throughput—at extremely low CPU usage with full hardware offloads.

The 16GFC QLE2670/2672 Adapters resolve data center complexities by enabling a storage network infrastructure that supports powerful virtualization features,

application-aware services, and simplified management. This achievement provides a next-generation storage networking infrastructure capable of supporting the most demanding virtualized and cloud-enabled environments, while fully leveraging the capabilities of high-performance 16GFC and solid-state disk (SSD) storage. These features help reduce cost and complexity while the unmatched 16GFC performance eliminates potential I/O bottlenecks in today’s powerful multiprocessor, multicore servers.

Bus Interface

PCI Express® 3.0 x4 and 2.0 x8 (x8 physical connector)

Port Virtualization

NPIV

Ports

Dual-port，16 GFC

Throughput

1,600MBps line rate per port (maximum)

Temperature

Operating：0°C to 55°C (32°F to 131°F)

Storage：–20°C to 70°C (–4°F to 158°F)

Humidity

Relative：10%至90%

Storage：5%至95%

Ordering Information
Model	QLE2670 (Single-port)
Illustrate	• Ships with SR optical transceivers and standard height bracket installed • Ships with spare low profile bracket (-CK and -SP models only)
Model	QLE2672 (Dual-port)
Illustrate	• Ships with SR optical transceivers and standard height bracket installed • Ships with spare low profile bracket (-CK and -SP models only)
