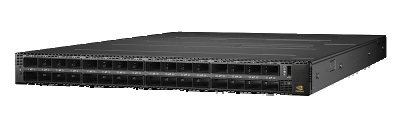

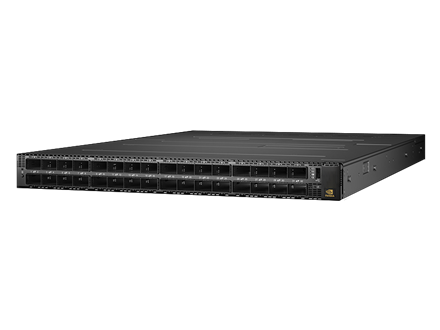

The QM9790 switch system based on NVIDIA Quantum-2 provides 64 NDR 400Gb/s InfiniBand ports in a 1U standard chassis design. A single switch delivers an aggregate bidirectional throughput of 51.2 terabits per second (Tb/s) and a signature capacity of over 66.5 billion packets per second (BPPS). Supporting the latest NDR technology, the NVIDIA Quantum-2 InfiniBand switch offers high throughput, in-network computing, intelligent acceleration engines, flexibility, and a robust architecture to meet the requirements of high-performance computing (HPC), artificial intelligence, and hyperscale cloud infrastructure applications while reducing cost and complexity.
As an ideal rack-mounted InfiniBand solution, the QM9790 NDR InfiniBand fixed-configuration switch supports multiple topologies including Fat Tree, SlimFly, DragonFly+, and multi-dimensional Torus, delivering exceptional flexibility.
NVIDIA Quantum-2 also offers backward compatibility with previous-generation products and broad support for software ecosystems.
Enhanced Management
The externally managed QM9790 switch leverages the advanced feature set of NVIDIA UFM® (Unified Fabric Manager), enabling data center operations teams to efficiently configure, monitor, manage, and maintain modern data center networks with proactive troubleshooting. This improves utilization and reduces overall operational expenses.
Application scenarios of NVIDIA Quantum-2 series switches
1：Quantum-2 NDR 400Gb/s InfiniBand switch —— Quantum-2 NDR 400Gb/s InfiniBand switch
2：Quantum-2 NDR 400Gb/s InfiniBand Switch — 2 x ConnectX-6 QSFP56 InfiniBand Network Interface Cards (NICs)
3：Quantum-2 NDR 400Gb/s InfiniBand Switch — 4 x ConnectX-7 OSFP InfiniBand Network Interface Cards (NICs)
QM9790 Series Ordering Information |

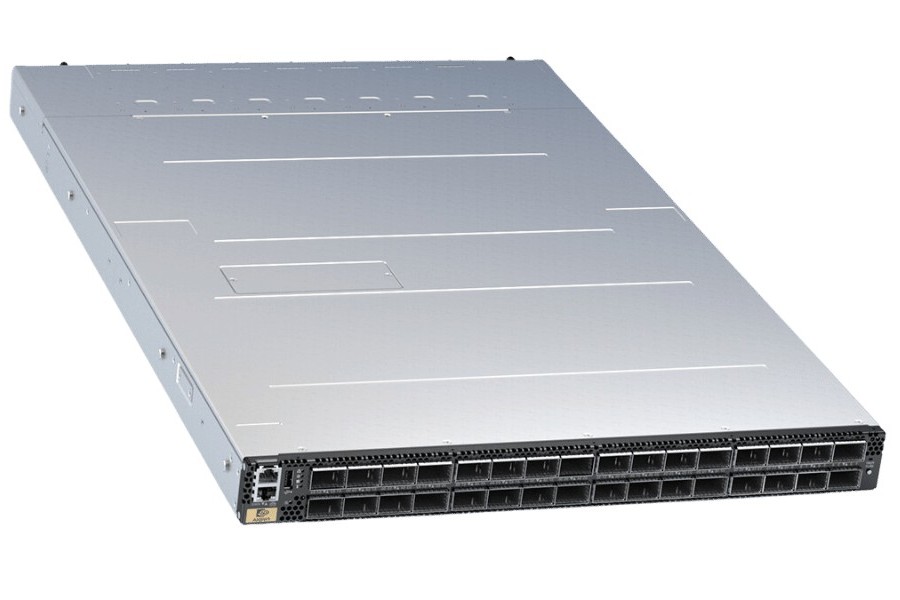

MQM9790-NS2F | 64-port 400Gb/s, 32 OSFP ports, unmanaged, P2C airflow (front-to-back) |

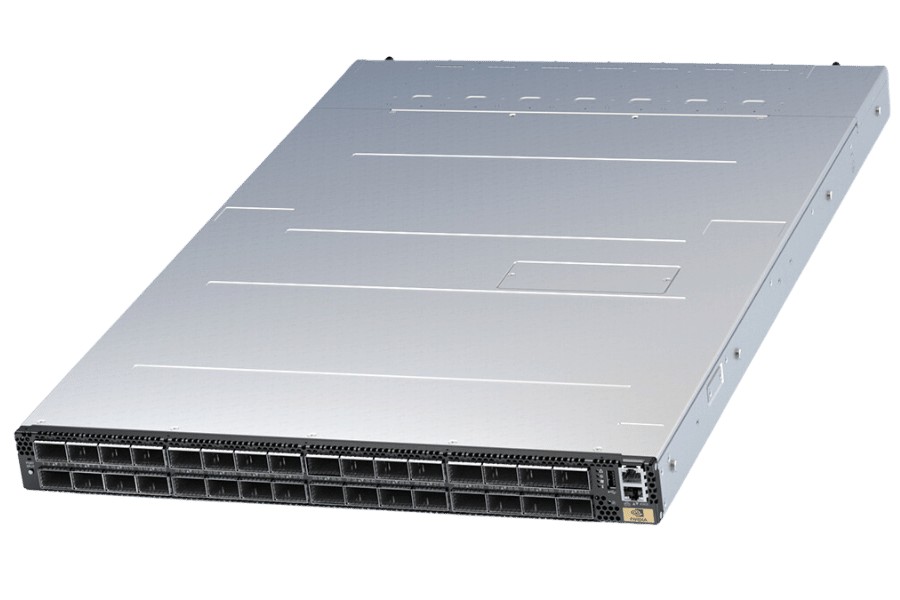

MQM9790-NS2R6 | 64-port 400Gb/s, 32 OSFP ports, unmanaged, C2P airflow (back-to-front)） |
|
|
|
