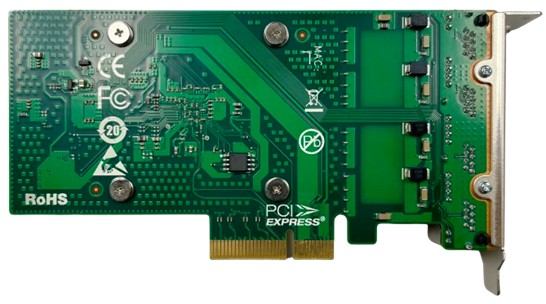

HZ11860T4, domestic gigabit four-port network card

￥385

型号：HZ11860T4

specifications:

HZ11860T4 HZ11860T4I

加入购物车

产品特征

Supports 4-port 1 GbE network interfaces

Supports PCIe Gen2x4 host interface

Supports 1000Base-T/100Base-T/10Base-T, RGMII

Module with internally integrated Gigabit MAC and PHY

Supports network protocol acceleration (TCP/UDP, IP)

Supports 8 virtual machines (SR-IOV)

Supports remote network boot protocol (PXE)

Supports traffic control

Supports SM2/SM3/SM4 algorithms

Supports mainstream CPUs such as x86, MIPS, ARM, Alpha, etc.

Supports mainstream Windows and Linux operating systems

商品详情
资料下载(PDF)


HZ11860T4 is a four-port network adapter with a PCI Express 2.0 x4 bus interface developed based on the domestic WX1860A4 solution. WX1860A4 features 4 fully integrated Gigabit Ethernet Media Access Control (MAC) and Physical Layer (PHY) modules. It can be used in PC servers and embedded network devices. As a domestic product, it is independently controllable and supports four-port 1G network applications.

Basic specifications

controller	WX1860A4
Transmission medium	twisted pair
Working mode	1000BASE-T、100BASE-TX、 10BASE-T
Power Consumption (Max)	3.5W
Port type	4 RJ45 interfaces
PCIe bus	PCIE2.0 x4
Port rate	1Gbps
Power supply	PCIe power supply
heat dissipation	Passive cooling

Technical parameters

Meet the standards

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3az Energy Efficient Ethernet (EEE)

IEEE 802.1Q VLAN

IEEE 802.1AS

IEEE 802.1Qau

IEEE 802.1p

IEEE 802.1Qbg Virtual Bridging

IEEE 802.1Qbb Priority Flow Control

Network characteristics

Support network protocol acceleration (TCP/UDP, IP)

Support SR-IOV and VMDq

Support Wake-on-LAN (WoL)

Support IPsec offloading

Support Preboot Execution Environment (PXE)

Support DPDK

Support jumbo frames (Max 9.5KB)

Network card order information

Model	Description
HZ11860T4	Domestic WX1860A4 chip, 4 1G RJ45 interfaces, 0℃-55℃
HZ11860T4I	Domestic WX1860AL2 chip, 4 1G RJ45 interfaces, -40℃-85℃
