NVIDIA MCX623105AN-VDAT
￥1

型号：MCX623105AN-VDAT

加入购物车

产品特征

1/10/25/40/50/100/200 Gb/s Ethernet, PAM4/NRZ

PCIe Gen 4.0 x16 host interface

Crypto Disabled

Message rate up to 215 Mpps

Latency < 0.8 microseconds

Flexible programmable pipeline for new network flows

Multi-host with advanced QoS

Host Chaining Technology for Cost-Effective Rack Design

Supports x86, Power, ARM

ODCC compatible

Advanced RoCE Features

  • 商品详情
  • 资料下载(PDF)

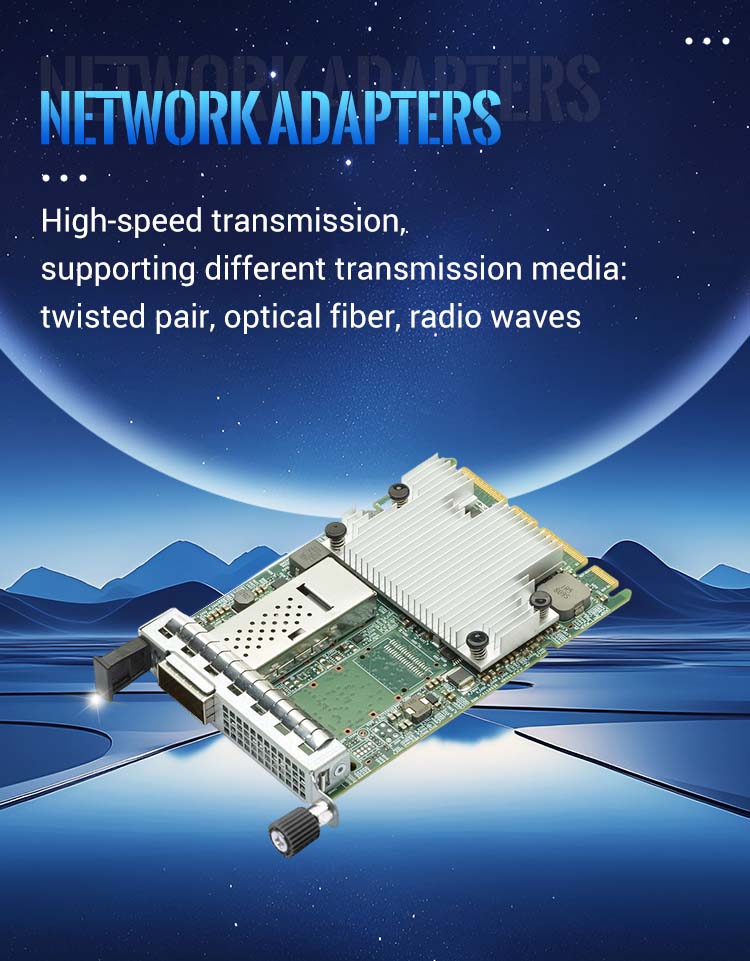

恒正同创第二次版详情页_01恒正同创第二次版详情页_02恒正同创第二次版详情页_03

The ConnectX‑6 Dx SmartNIC is the industry’s most secure and advanced cloud network interface card, accelerating mission‑critical data center applications such as security, virtualization, SDN/NFV, big data, machine learning, and storage. It offers up to two 100 Gb/s ports or one 200 Gb/s Ethernet port, and delivers the highest return on investment (ROI) of any intelligent network interface card.


Specification
Part NumberMCX623105AN-VDAT
Data Rate10/25/40/50/100/200GbE
Interface TypeSingle-port QSFP56
ApplicationEthernet
Host InterfacePCIe Gen 4.0 x16
RoCESupported
Chip TypeConnectX-6 Dx EN
RoHSCompliant
Operating SystemsRHEL/CentOS, Windows, FreeBSD, VMware, OFED, WinOF-2
Link Rate16.0 GT/s

Product advantages:

Cloud-Native, Web 2.0, Hyperscale

Enterprise Data Centers

Network Security

Big Data Analytics

Scale-Out Compute and Storage Infrastructure

Telecommunications and Network Functions Virtualization (NFV)

Cloud Storage

Machine Learning (ML) and Artificial Intelligence (AI)

Media and Entertainment


 恒正同创第二次版详情页_05恒正同创第二次版详情页_06恒正同创第二次版详情页_07恒正同创第二次版详情页_08恒正同创第二次版详情页_09恒正同创第二次版详情页_09-1恒正同创第二次版详情页_10恒正同创第二次版详情页_11恒正同创第二次版详情页_13
